REGULATOR AND PICO BOX PSU

Single Rail Regulator

Appliance with the CPU under 54W

External power transformer :

1.AC 18V/8A-12A for +20V Regulator Module

2.AC12V/12A-16A for +12V Regulator Module

A 4pin XLR for connect External Power Transformer and Regulator Module,

Pin1 and 2 with red mark for the first(Low Input),

Pin3 and 4 with yellow mark for the second(High Input)

"Single Rail Regulator used pin1,2 or pin3,4 only"

Single Rail Regulator Module:

1.+20V for Wide Range Pico Box PSU

2.+12V for +12V Pico Box PSU

Pico Box PSU:

1.160W Wide Range Version

2.160w +12V Version

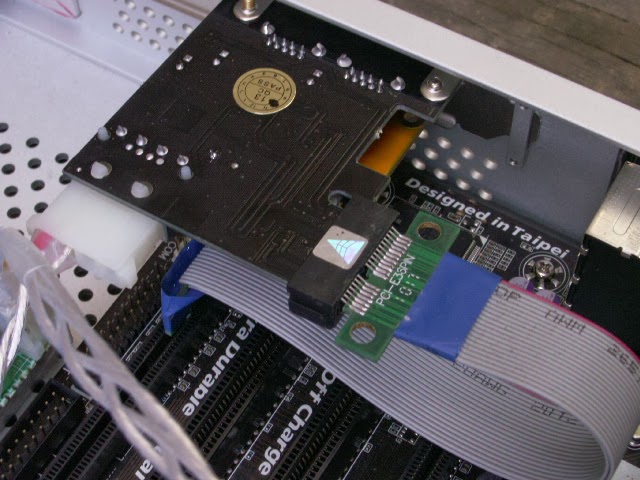

 CF AS SSD,USB CARD,CPU powered by Pico Box PSU

  Single Transfrmer for Dual Rails Regulator

Appliance with the CPU under 54W

1. External power transformer : AC12V/12A-16A

2. Regulator Module: Daul +12V

3.Pico Box PSU: 160w +12V Version

One rail for the CPU.

Another rail for the Pico Box .

CF AS SSD,USB CARD powered by Pico Box PSU

 Dual Transfrmers for Single Rail + Dual Rails Regulator

 Appliance with the CPU under 70W

1. External power transformer 1 : AC12V/12A-16A (AC 18V/8A-12A)

2. External power transformer 1 : AC12V/12A-16A

4. Regulator Module: Single Rail +12V (+20V)

5. Regulator Module: Dual Rails +12V and +5V

6.Pico Box PSU: 160w +12V Version (Wide Range Version)

Single Rail Regulator Module to powered the Pico Box PSU,

Dual rails Regulator Module +12V to powered the CPU,

+5V to powered the SSD and USB card.
