MUSIC SERVER IN FC10 PART 1

MUSIC SERVER IN FC10 PART 1 ,
With pico box in external linear PSU input.

Top view.
Gigabyte GA-H87M-D3H Main Board with i7-4770T CPU




Pico Box PSU with audio grade power cable



Input socket of pico box PSU,
Could be replace the socket to fit the linear PSU



Riser for V2 USB card



V2 USB card need to powered by a +5V/1-3A from pico box,
If you are using a linear PSU for the pico box.
It is not much difference with sound quality to power V2 card from a separate +5V linear PSU

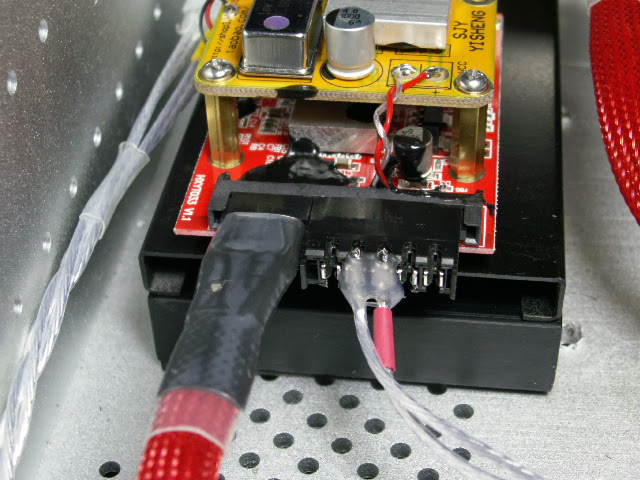

CF as SSD will provide the best sound quality to any SSD



CF as SSD has used the same connector with regular SSD

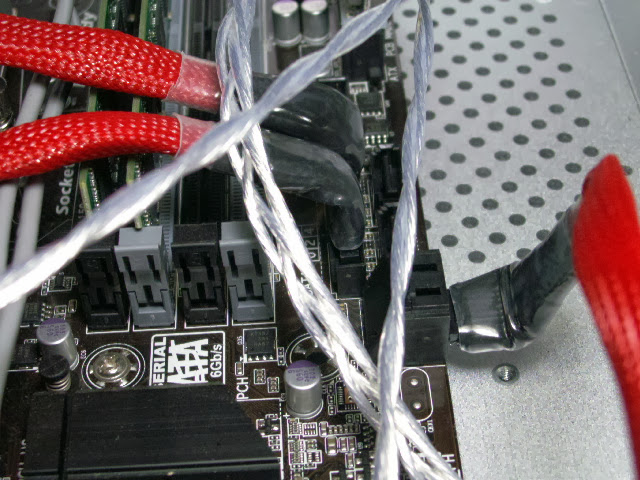

SATA cable with 70 degree connector



As my SATA cable is anti twist,
You could bend the body of sata cable for easier install,
And the SATA cable won't be demage.

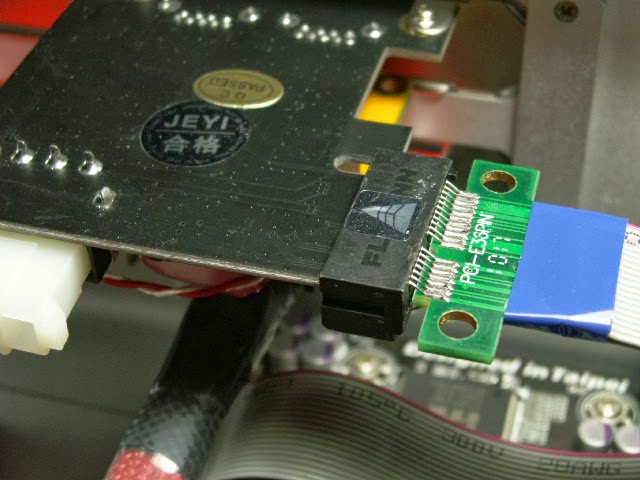

SATA extension card,
Please keep the connector straight to avoid the bad contact.




The bracket os SATA extension card.




The main clock of Main Board upgraded with low jitter TCXO with output transformer.
