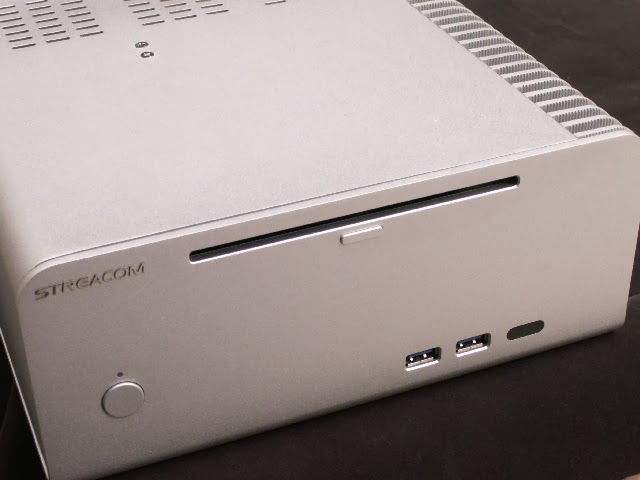

This is a High End Grade Music Server with Stracom FC5WD EVO Chassis
Dual Regulator Modules
+20V regulator for the wide range pico box to the Main board
Wide range pico box,
The pico box powered the Main Board only.
Dual rails regolator module,
+12V for the CPU,
+5V for the SSD,CF,USB card.
4pin CPU plug will fit with 8pin CPU socket of the Main Board
OS SSD,CF as Music Disk and Clock upgrade
PPA low jitter TCXO with digital output transformer for the main clock upgrade of the Main Board.
This upgrade will decrease the distortion and to make more smooth listening and analog like.

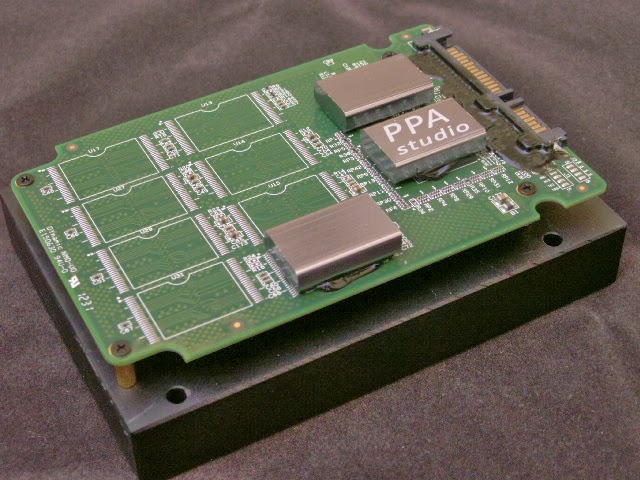

SATA II audio grade SSD for the OS,
This SSD could ran at SATA II speed on any SATA III socet of the Main Board.
It is better than any SATA III SSD.
CF as Music Disk,
Load the music file to the CF from the NAS,External HHD,USD disk.......then play music from the CF for the better sound quality!

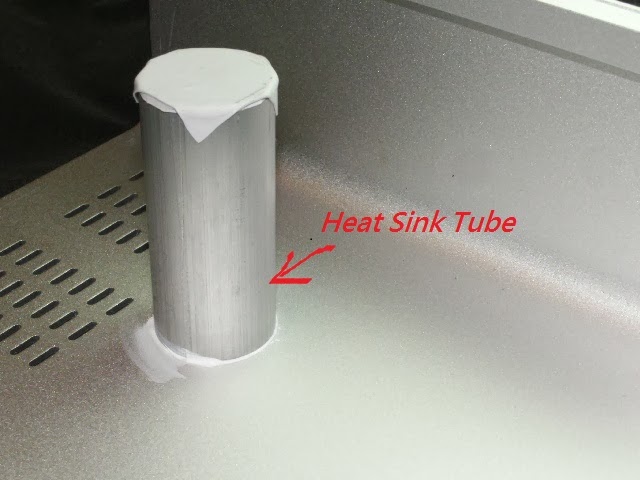

Heat sink tube for vibration control and EMI shield.
Heat tube for the south bridge too
It is not more than 40 degree after playing 720p video after 2 hours,
Very good result.
Streacom FC5 Music server performance in the audition room.
Speaker:Watt/puppy 7
Power Amp:GM 200W mono+mono
Pre amp:DIY FM
DDC:PPA 01USD + PPA 120W LPSU
DAC:PPA DAC1541
LP:Garrad + EMT
Server:PPA Streacom FC5
DUAL PC for jplay
Control PC
Control PC
MB:gigabyte GA-H87N-WIFI
http://www.gigabyte.com/products/product-page.aspx?pid=4601#ov
Dual GHz lan ports with WIFI
4pin XLR socket for the external power transformer input
Dual +12V regulator module,
+12V for the +12V pico box,
SSD,CF powered from the pico box.
The other +12V for the CPU.
32G Audio grade SSD for the OS,
64G Audio grade SSD for the music file,
Rip audio file to music SSD and transfer to NAS or external HHD for storge.
Play music from music SSD for the best sound quality.
(Please load files from NAS or external HHD to the music SSD first the play from music SSD. )
SATA extension board for the External DVD burner or HHD,
Offer 4pin Molex socket to powered the DVD burner and HHD.
Because this power supply is from the pico.
Recommend to use single DVD burner or single HHD only.
To powerthe NAS or HHD tray may burn the pico box!!
Clock upgrade for the Main Board.
Red SATA slim with angle connector
160W pico box with audio grade power cables
Audio PC is similer to Control PC but with USB card for the Audio Output and without the Music SSD.
External power transformer unit.
One transformer unit include twin 150W power transformers for both control PC and the audio PC.
Power unit offer AC110V or 220V,
Audio grade connecting cables.
