Streacom FC5 with Linear regulator and pico box PSU

Streacom FC5 aluminum chassis

Lay out

Two regulator modules in 3 rails output

Single rail +20v output for the wide range pico box,
Output socket compatible with my pico box.

Wide range pico box

Two rails module,
+12V for the CPU,
+5V for the SSD,CF adapter and USB card.

4pin ATX connector is compatible with 8pin CPU socket

20cm Red sata slim is fine.

Heat sink tube for the CPU

Heat sink tube for the south bridge

Heat sink tube has vibration control and EMI shield function also.
It will improve the sound quality.

CPU testing

Using i7-4770 84W CPU,
The temperature on the top point of CPU is under 40 degree after playing 720p video for 5 hours.

Audio grade SSD with Red sata slim cable for the O.S..

64G CF card as the Music Disk

Main clock upgrade

Memory upgrade

If you are interested,
You could try 16 multiplier for CPU and RAM,

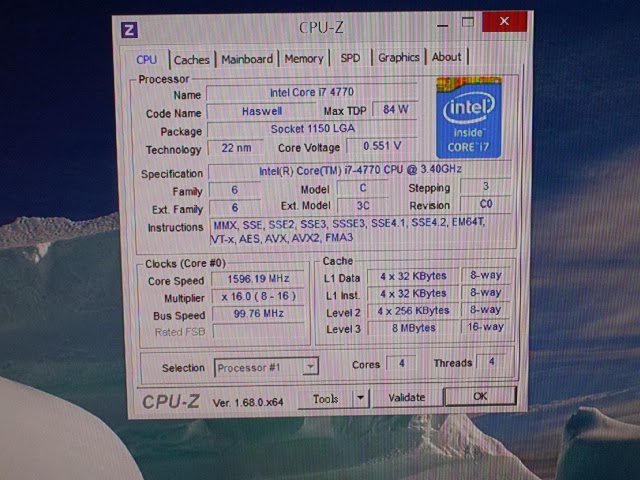

CPU ran 1.6G and the RAM ran 1600.

External power transfpr mer with the heavy full aluminum chassis.
Size:300mm x 140mm x 120mm,
Weight:approx 9 kgs.

 Dual 150VA(150W) power transformers.

Soldering with pressure for the best connecting.

 Offer 110V or 220V AC input,
4pin XLR socket for the output.

 Connecting cables
